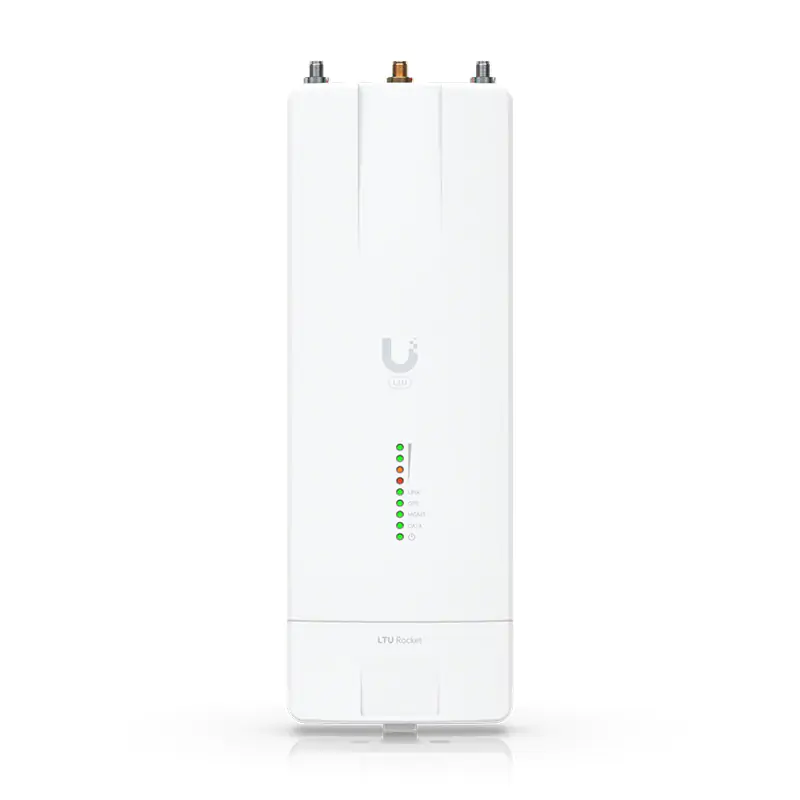

Ubiquiti LTU Rocket Point-to-MultiPoint (PtMP) 5GHz LTU BaseStation Radio (LTU-ROCKET-AU)

Ubiquiti LTU Rocket Point-to-MultiPoint (PtMP) 5GHz LTU BaseStation Radio (LTU-ROCKET-AU)
  • Antennas-Ubiquiti-LTU-Rocket-Point-to-MultiPoint-PtMP-5GHz-LTU-BaseStation-Radio-LTU-ROCKET-AU-7
  • Antennas-Ubiquiti-LTU-Rocket-Point-to-MultiPoint-PtMP-5GHz-LTU-BaseStation-Radio-LTU-ROCKET-AU-4
$699.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 49hrs and 15mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti LTU Rocket Point-to-MultiPoint (PtMP) 5GHz LTU BaseStation Radio (LTU-ROCKET-AU)
  • Model Number:
    LTU-ROCKET-AU
  • Brand:
  • Warranty Period:
    1 Year

Description

Antennas-Ubiquiti-LTU-Rocket-Point-to-MultiPoint-PtMP-5GHz-LTU-BaseStation-Radio-LTU-ROCKET-AU-5





SPECIFICATIONS:

MECHANICAL


Dimensions

224 x 82 x 48mm (8.82 x 3.23 x 1.89")

Weight

468 g (1.03 lb)

Enclosure materials

Diecast aluminum, polycarbonate

Mount materials

Metal, polycarbonate

Mounting

Integrated pole mount (Kit included)
GPS pole mount (Kit included)
Rocket mount compatible

Weatherproofing

IP67

HARDWARE


Networking interface

(2) GbE RJ45 ports

Power method

Dual passive PoE

Power supply

24V, 1A PoE Gigabit adapter (Included)

Supported voltage range

18—54V DC

Max. power consumption

25W

RF connections

(2) RP-SMA weatherproof   (CH0, CH1)
(1) SMA weatherproof (GPS)

GPS

Yes

GPS antenna

External magnetic base

Button

Factory reset

Operating temperature

-40° to 55° C (-40° to 131° F)

Certifications

FCC

SOFTWARE


Mode

PtMP BaseStation radio

Services

SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog

Utilities

airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation

Auto distance adjustment

Yes

Auto power adjustment

Yes

Security

Yes

Statical reporting

Yes

Management interface

Bluetooth management for easy setup over UISP App
WEB UI

Minimum software requirements

Any modern   web browser
iOSâ„¢ or Androidâ„¢ based smartphone

SYSTEM


Maximum throughput

900+ Mbps*
*FW version 2.3.0 and later.

Packets per second

2+ million

Supported clients count

100+

Maximum range

100+ km*
* Throughput and range values may vary depending on the environmental conditions.

Encryption

WPA2-PSK (AES)

Uplink/Downlink ratio

25/75, 33/67, 50/50

RF


Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

Worldwide




5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

4800 - 6200 MHz
*Depends on regulatory region.

Max. conducted TX power

29 dBm

Channel bandwidth

10/20/30/40/50/60/80/100   MHz* selectable
Programmable uplink and downlink duty cycles
*FW version 2.3.0 and later.

Management radio

2400 - 2483.5   MHz
