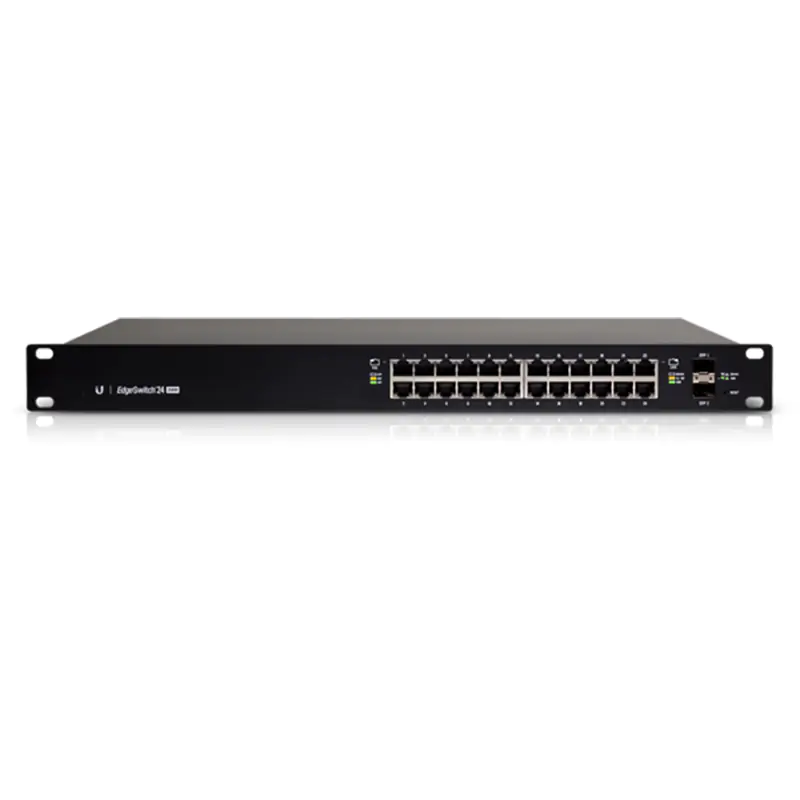

Ubiquiti EdgeSwitch 24 Port Managed PoE+ Gigabit Switch (ES-24-250W-DUP)

Ubiquiti EdgeSwitch 24 Port Managed PoE+ Gigabit Switch (ES-24-250W-DUP)
  • 61515_thumb_P_1638500727641
  • 61515_thumb_P_1638500719059
  • 61515_thumb_P_1638500719314
$699.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 45hrs and 0mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti EdgeSwitch 24 Port Managed PoE+ Gigabit Switch (ES-24-250W-DUP)
  • Model Number:
    ES-24-250W-DUP
  • Brand:
  • Warranty Period:
    1 Year

Description

Layer 2/3, PoE switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.

Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.


  • (24) Gigabit RJ45 Ports

  • (2) SFP Ports

  • (1) Serial Console Port

  • Non-Blocking Throughput: 26 Gbps

  • Switching Capacity: 52 Gbps

  • Forwarding Rate: 38.69 Mpps

  • Maximum Power Consumption: 250W

  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE

  • Rackmountable



SPECIFICATIONS:

Dimensions

485 x   43.7 x 285.4 mm
  (19.09 x 1.72 x 11.24")

Weight

4.7 kg
  (10.4 lb)

Total Non-Blocking Throughput

26 Gbps

Switching Capacity

52 Gbps

Forwarding Rate

38.69 Mpps

Max. Power Consumption
  Includes PoE Output
  Excludes PoE Output

250W
  30W

Power Method

100-240VAC/50-60 Hz, Universal Input

Power Supply

AC/DC, Internal, 250W DC

LEDs Per Port
  RJ45 Data Ports
  SFP+/SFP Data Ports

PoE, Speed/Link/Activity
  Speed/Link/Activity

Networking Interfaces

(24) 10/100/1000 Mbps RJ45 Ethernet Ports
  (2) 1 Gbps SFP Ethernet Ports

Management Interface

(1) RJ45 Serial Port, Ethernet In/Out Band

Certifications

CE, FCC, IC

Rackmount

Yes, 1U High

ESD/EMP Protection

Air: ±24 kV, Contact: ±24 kV

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4 Standard

PoE Interfaces

POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4,   5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE

34.2W

Voltage Range 802.3at Mode

50–57V

Max. Passive PoE Wattage per Port

17W

24V Passive PoE Voltage Range

20-27V
