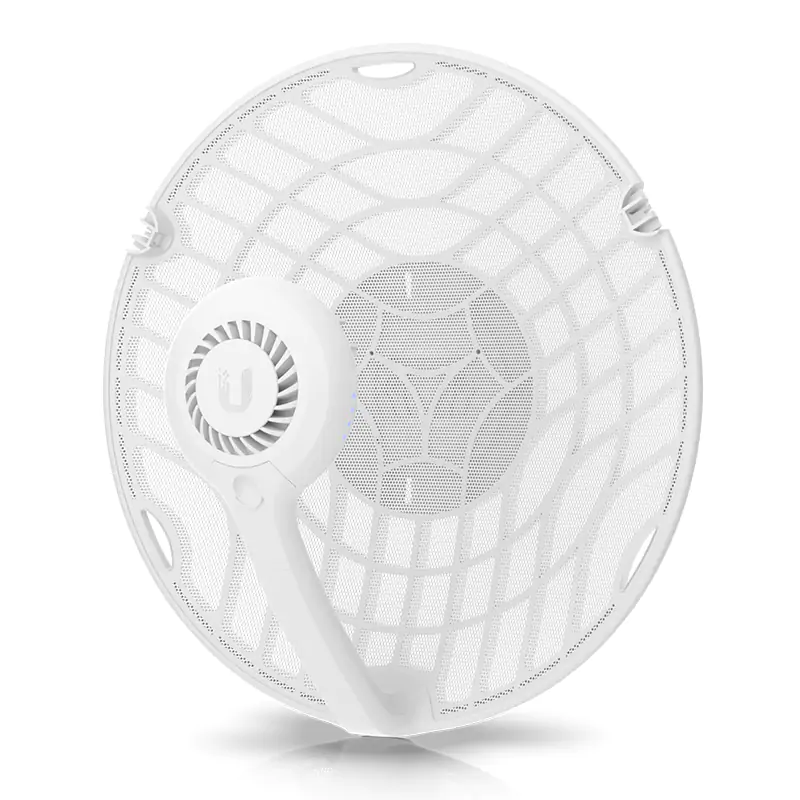

Ubiquiti airFiber 60 Long-Range 60 GHz PtP Radio System Powered by Wave Technology. (NHU-AF60-LR)

Ubiquiti airFiber 60 Long-Range 60 GHz PtP Radio System Powered by Wave Technology. (NHU-AF60-LR)
  • Antennas-Ubiquiti-airFiber-60-Long-Range-60-GHz-PtP-Radio-System-Powered-by-Wave-Technology-NHU-AF60-LR-3
$829.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 49hrs and 3mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti airFiber 60 Long-Range 60 GHz PtP Radio System Powered by Wave Technology. (NHU-AF60-LR)
  • Model Number:
    NHU-AF60-LR
  • Brand:
  • Warranty Period:
    1 Year

Description

Antennas-Ubiquiti-airFiber-60-Long-Range-60-GHz-PtP-Radio-System-Powered-by-Wave-Technology-NHU-AF60-LR-1





SPECIFICATIONS:

MECHANICAL


Dimensions

Ø413 x 360 mm (Ø16.3 x   14.2")

Weight

Without mount: 1.5 kg (3.3 lb)
With mount: 2.7 kg (6 lb)

Enclosure materials

Aluminum, UV stabilized polycarbonate

Mount material

Galvanized steel

Mounting

Precision alignment kit   (included)
Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 3")

Wind loading

420 N at 200 km/h (94.4 lbf at 125 mph)

HARDWARE


Processor

Quad-Core ARM® Cortex® A7

Memory

256 MB DDR3

Networking interface

(1) GbE RJ45 port

Max. power consumption

22W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply

48V DC, 0.65A gigabit PoE adapter (included)

Supported voltage range

44–54V DC
22–27V DC

GPS

Yes

RF connections

Internal

ESD/EMP protection

Air/contact: ± 24kV

Operating temperature

-40 to 60° C (-40 to 140° F)

Operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE

SOFTWARE


Operating mode

PtP only

Ubiquiti specific features

Wave technology, discovery utility

Network

Bridge mode

Services

UISP, ping watchdog, NTP client

Tools

Antenna   alignment, discovery utility, ping, trace route, speed test

Software management

Bluetooth management for easy setup over UISP app
WEB UI

Minimum software requirements

Any modern web browser/iOSâ„¢ or Androidâ„¢ based smartphone

SYSTEM


Max. throughput

1.95 Gbps

Max. range

12+ km

Encryption

WPA2-PSK (AES)

RF


Operating frequency*

57–71 Ghz
* Depends on regulatory region.

Channel bandwidth

2160, 1080 MHz

Polarization

Vertically linear

Beamwidth

Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6°

LEDS


Power

Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application

Ethernet

Flashing blue: Ethernet activity

GPS

Blue: receiving at least (4) GPS satellite signals

60G

Blue: active connection
