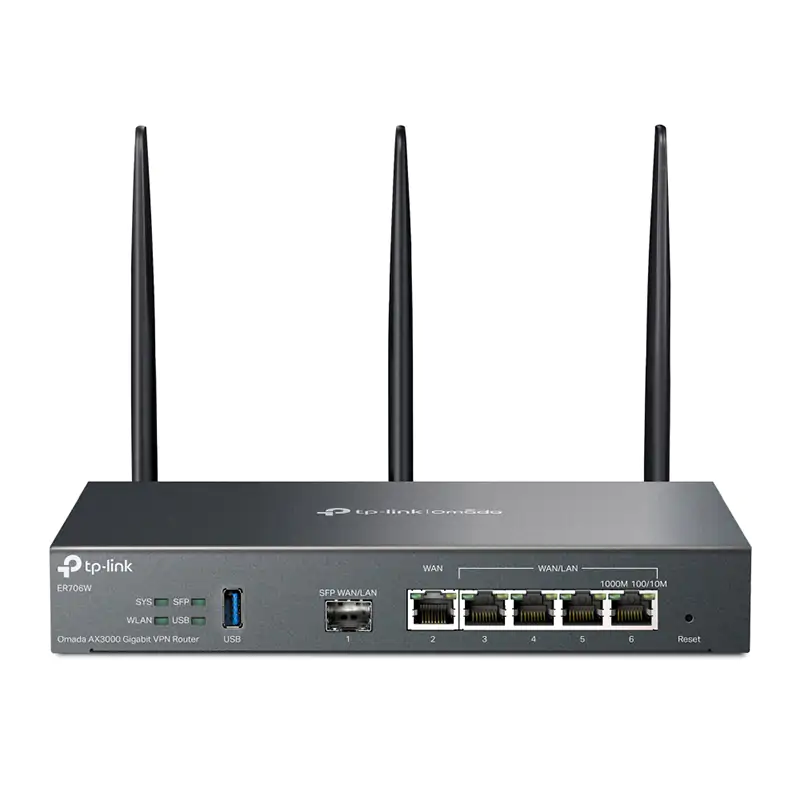

Interface

• 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port

• 4 Gigabit LAN/WAN Ports

• 1 USB3.0 (supports USB LTE dongle and USB Storage)

Button

Reset Button

Power Supply

12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate

2.4 GHz: 574 Mbps

5 GHz: 2402 Mbps (HE160)

Flash

128 MB NAND

DRAM

512 MB DDR4

Dimensions ( W x D x H )

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)

Antenna

2.4 GHz: 2x 3 dBi dual-band detachable antennas

5 GHz: 3x 4.5 dBi dual-band detachable antennas

Mounting

Desktop/Wall-mounting

Max Power Consumption

EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)

US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)

PERFORMANCE

GRE

• Unencrypted: 624.2Mbps

• Encrypted: 301.5Mbps

WireGuard VPN 393.5Mbps

Concurrent Session

150,000

New Sessions /Second

5,100

NAT (Static IP)

937.2 Mbps / 936.1Mbps

NAT(DHCP)

945.8 Mbps / 940.6Mbps

NAT(PPPoE)

942.9 Mbps / 942.9Mbps

NAT (L2TP)

837.4 Mbps / 881.5Mbps

NAT (PPTP)

803.0 Mbps / 910.5 Mbps

IPsec VPN Throughput

• ESP-SHA1-AES256: 646.9Mbps

• ESP-SHA256-AES256: 642.8Mbps

• ESP-SHA384-AES256: 648.9Mbps

• ESP-SHA512-AES256: 658.4 Mbps

OpenVPN

129.3Mbps

L2TP VPN Throughput

• Unencrypted: 1034.0 Mbps

• Encrypted: 570.0 Mbps

PPTP VPN Throughput

• Unencrypted: 1165.0 Mbps

• Encrypted: 209.0 Mbps

SSL VPN Throughput

126.7Mbps

66 Byte Packet forwarding rate

1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate

81,274 pps / 91,275 pps

WIRELESS FEATURES

Advanced Functions

• Seamless Roaming

• Mesh (with EAP that supports Mesh)

• OFDMA

• Beamforming

• MU-MIMO

• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3   Enterprise

Guest Network

Support

BASIC FUNCTIONS

WAN Connection Type

• Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

MAC Clone

Modify WAN Address

DHCP

• DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough /   Non-Address mode

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

• Static Routing

• Policy Routing

• RIP

• OSPF

Bandwidth Control

IP-Based Bandwidth Control

Load Balance

• Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection

NAT

• One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit

IP-Based Session Limit

VPN

SSL VPN

50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server

• PPTP VPN Client (10)△

• 50 Tunnels

• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server

• L2TP VPN Client (10)△

• 50 Tunnels

• L2TP over IPSec

OpenVPN

• OpenVPN Server

• OpenVPN Client (5)△

• 55 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

SECURITY

Filtering

• Web Group Filtering

• URL Filtering

• Web Security

ARP Inspection

• Sending GARP Packets

• ARP Scanning

• IP-MAC Binding

Attack Defense

• TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication

• No Authentication

• Simple Password§

• Hotspot (Local User / Voucher§ / SMS§ / Radius§)

• External Radius Sever

• External Portal Sever§

• LDAP

MANAGEMENT

Omada App

Yes.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access

Yes.

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance

• Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)

• NTP Synchronize

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

Zero-Touch Provisioning

Yes. Require the use of Omada Cloud-Based Controller.

Management Features

• Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• ER706W

• Power Adapter

• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows   7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

Notes

^*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.

^**Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz   bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.

^△For PPTP VPN and L2TP VPN, ER706W V1 can connect with up to 10 VPN servers. For OpenVPN, ER706W V 1 can connect with up to 5 VPN servers.

**Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.
