Interface

1× 2.5G Ethernet Port

Button

Reset

Power Supply

802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

Power Consumption

• 18.6 W (For PoE);

• 16.0 W (For DC)

Dimensions ( W x D x H )

6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

Antenna Type

• 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

Mounting

Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage

140㎡(1500 ft²)***

Wireless Client Capacity

250+**

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

2.4 GHz and 5 GHz

Signal Rate

688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

Wireless Functions

• 4K-QAM

• Seamless Roaming

• MU-MIMO

• EHT160

• Mesh△

• OFDMA

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:16(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

Wireless Security

• Captive Portal Authentication△

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

< 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, band 1&band 2, EIRP)

< 28 dBm (5 GHz, band 3, EIRP)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

Web-based Management

Yes

OTHERS

Certification

CE, FCC, RoHS, IC

Package Contents

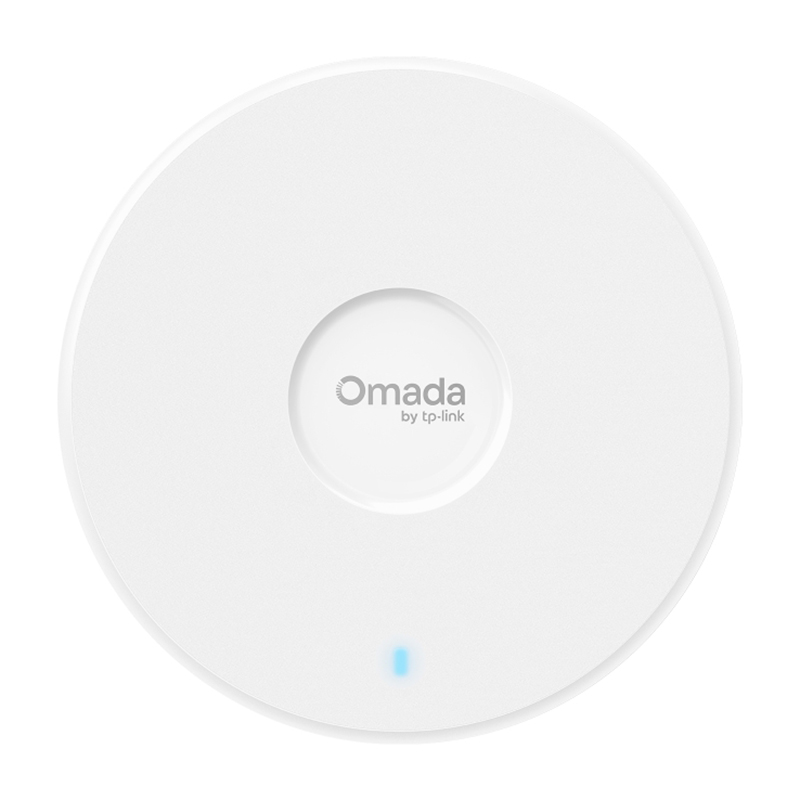

• EAP723

• Installation Guide

• Ceiling/Wall Mounting Kit

Environment

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz   band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and   environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.

^**The actual capacity depends on the wireless environment and client traffic and is   generally less than the maximum number of client connections.

^***Coverage value is calculated based on laboratory testing. Actual coverage is not   guaranteed and will vary as a result of client limitations and environmental factors.

^△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of   an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
