Interface

1 × 10/100/1000 Mbps LAN/WAN Port

2 × 10/100/1000 Mbps LAN Ports

1 × Nano SIM Card Slot

2 × 5G/4G External Antenna Ports

Button

WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A

Output parameter

12VDC 2A

Dimensions ( W x D x H )

3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)

Antenna

8 × 5G/LTE Internal Antennas

2 × Wi-Fi Internal Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz

Reception Sensitivity

5GHz

11a 54M：-80 dBm

11ax HE20：-68 dBm

11ax HE40：-65 dBm

11ax HE80：-62 dBm

11ac VHT20：-76 dBm

11ac VHT40：-72 dBm

11ac VHT80：-68 dBm

11n HT20：-79 dBm

11n HT40：-75 dBm

2.4GHz

11g 54M：-78 dBm

11ax HE20：-65 dBm

11ax HE40：-62 dBm

11ac VHT20：-73 dBm

11ac VHT40：-68 dBm

11n HT20：-75 dBm

11n HT40：-72 dBm

Transmit Power

<23dBm (5.15GHz~5.35GHz)

<30dBm (5.47GHz~5.71GHz)

<20dBm (2.4GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)

FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)

TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)

DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service

Prioritizes network traffic by device or application

Security

DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

TP-Link Cloud, Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

VPN

PPTP VPN, IPSec VPN , OpenVPN

Access Control

Parental Control, Local Management Control

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network x 1

5 GHz Guest Network x 1

OTHERS

Certification

CE, RoHS

Package Contents

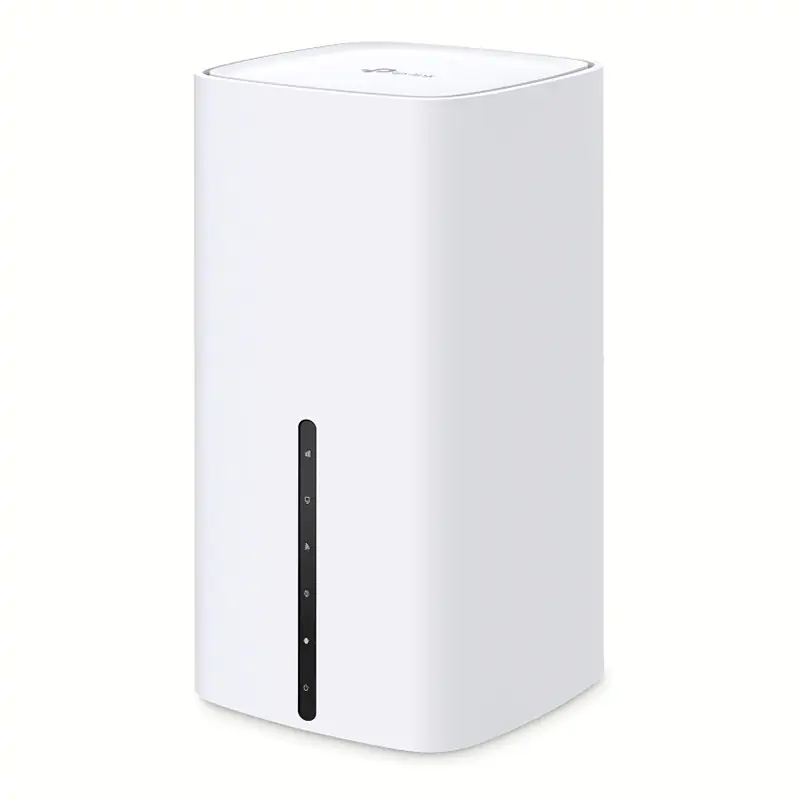

5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200

1.5m Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Nano SIM Card

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉   ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Notes

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
