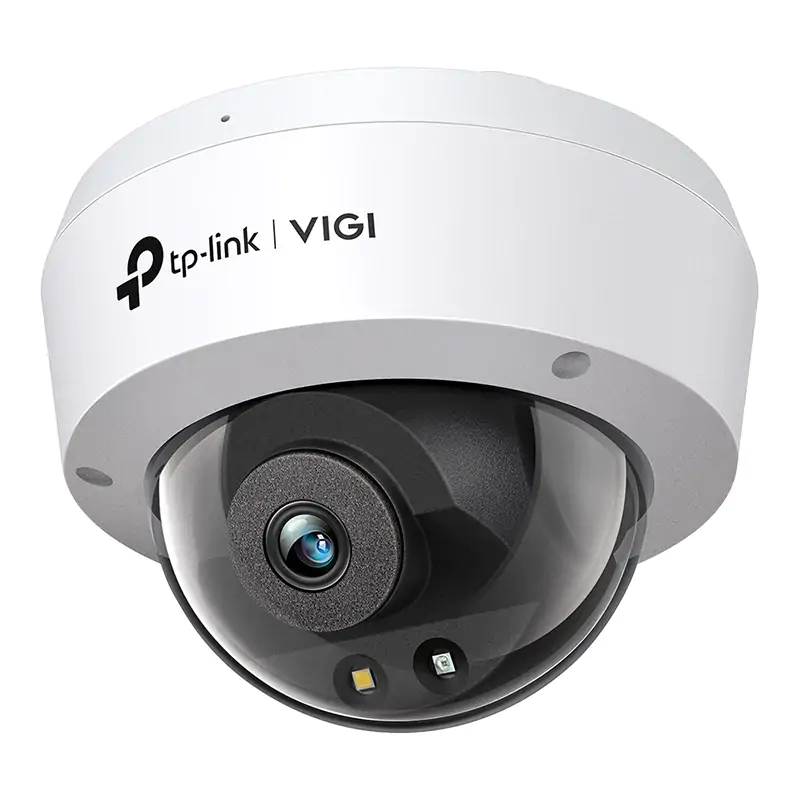

TP-Link 4MP Full-Color Dome Network Camera (VIGI C240(2.8mm))

TP-Link 4MP Full-Color Dome Network Camera (VIGI C240(2.8mm))
  • Security-Cameras-TP-Link-VIGI-C240-2-8mm-4MP-Full-Color-Dome-Network-Camera-3
$73.0 Question Mark
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 20hrs and 12mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-Link 4MP Full-Color Dome Network Camera (VIGI C240(2.8mm))
  • Model Number:
    VIGI C240(2.8mm)
  • Brand:
  • Warranty Period:
    3 Year

Description

Security-Cameras-TP-Link-VIGI-C240-2-8mm-4MP-Full-Color-Dome-Network-Camera-1





SPECIFICATIONS:

CAMERA


Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Lens

2.8 mm

Aperture

2.8 mm: F1.6

Lens Mount

M12

Viewing Angle

2.8mm:

Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

Pan/Tilt Range

Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP67

LENS


Type

Fixed Focal Lens

Focal Length

2.8 mm

Aperture

2.8 mm: F1.6

FOV

2.8 mm:

Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

Lens Mount

M12

DORI Distance

2.8 mm:

Detect: 64 m (209 ft)

Observe: 27 m (87 ft)

Recognize: 13 m (42 ft)

Identify: 6 m (21 ft)

VIDEO


Max. Resolution

2560 × 1440

Main Stream

Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

640x480,352x288, 320x240



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR


IR LED

Quantity: 1

Range: 30m

Wavelength: 850nm

White LED

Quantity: 1

Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

ANGLE ADJUSTMENT (MANUAL)


Range

Pan: 0° to 355°

Tilt: 0° to 75°



Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO


Audio Communication

N/A

Audio Input

Yes

Audio Output

N/A

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK


Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP,   SSL/TLS

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser

Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud

Yes

ONVIF

Yes

INTERFACES


Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm

N/A

Reset Button

N/A

Power

DC Power Port

Button

-

Video Output

-

On-board Storage

Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone

Yes

Built-in Speaker

N/A

Audio

N/A

ALARM AND EVENT MANAGEMENT


Smart Event

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal   Login)

Alarm Linkage

White Light Flashing, Message Push

Linkage Method

N/A

Output Notification

Message Push

GENERAL


Package Contents

VIGI Network Camera

Quick Start Guide

Waterproof Cable Attachments

Mounting Accessories

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Storage Humidity

95% or Less (Non-Condensing)

Operating Humidity

95% or Less (Non-Condensing)

Dimensions( H X W X D )

115 × 115 × 86 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight

0.28 Kg

Gross Weight

0.46 Kg

Power Consumption

12V DC: Max 5.4W

PoE: Class 0

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Vandal Resistant

IK10

Protection

IP67, IK10

Product Dimensions (L x W x H)

115× 86× 115 mm

Certifications

CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE


Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480,352x288, 320x240

Max. Resolution

4MP (2560 × 1440)

Video Streaming

Main Stream

Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Video Bit Rate

64 Kbps to 4 Mbps

Day/Night Switch

Day/Night/Auto/Schedule

SMART FEATURE-SET


Smart Event

Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
