Home  > PC Parts  > Computer Parts  > Motherboards  > Intel LGA 1700 > MSI PRO Z690-A LGA 1700 DDR4 ATX Motherboard (PRO Z690-A DDR4)

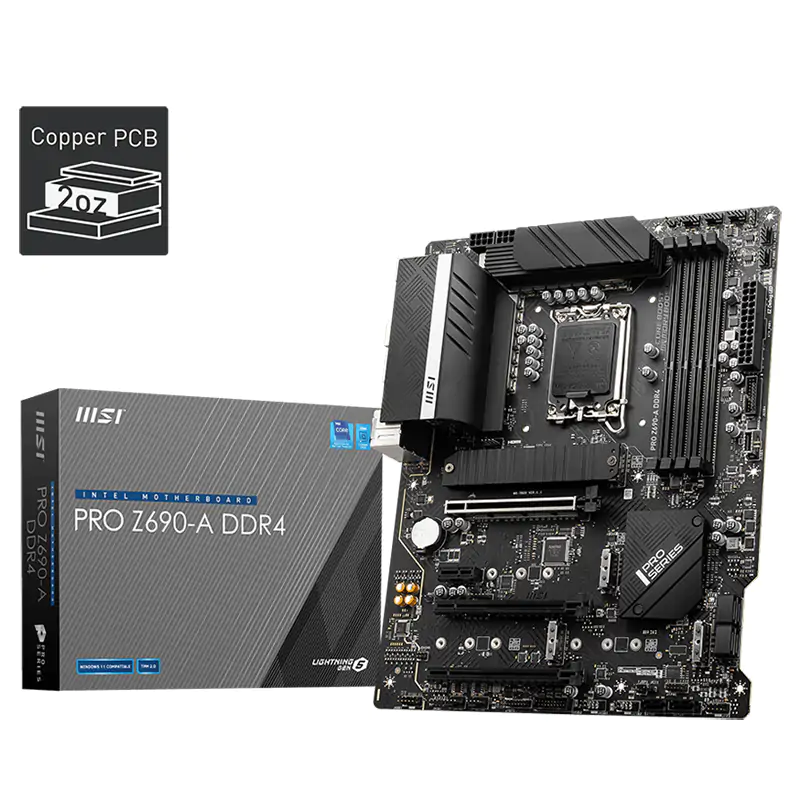

MSI PRO Z690-A LGA 1700 DDR4 ATX Motherboard (PRO Z690-A DDR4)

MSI PRO Z690-A LGA 1700 DDR4 ATX Motherboard (PRO Z690-A DDR4)
  • 61033_thumb_P_1636074713769
  • 61033_thumb_P_1636074700397
  • 61033_thumb_P_1636074700026
  • 61033_thumb_P_1636074700785
$289.00
5.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

OutOut Of Stock - for Pickup Question Mark

   Next Day Dispatch   Question Mark

OutOut Of Stock - for Delivery Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    MSI PRO Z690-A LGA 1700 DDR4 ATX Motherboard (PRO Z690-A DDR4)
  • Model Number:
    PRO Z690-A DDR4
  • Brand:
  • Warranty Period:
    3 Year

Description

1636074633499692



SPECIFICATIONS:

CPU (MAX SUPPORT)

i9

SOCKET

1700

CHIPSET

Intel® Z690 Chipset

DDR4 MEMORY

5200(OC)/ 5066(OC)/   5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/   3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/   3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

MEMORY CHANNEL

Dual

DIMM SLOTS

4

MAX MEMORY (GB)

128

PCI-E X16

3

PCI-E X1

1

SATAIII

6

M.2 SLOT

4

RAID

0/1/5/10

TPM (HEADER)

1

LAN

1x Intel® I225-V   2.5Gbps LAN

USB 3.2 PORTS (FRONT)

1(Gen 2, Type C), 4(Gen   1, Type A)

USB 3.2 PORTS (REAR)

1(Gen 2x2, Type C),   1(Gen 2, Type A), 2(Gen 1, Type A)

USB 2.0 PORTS (FRONT)

4

USB 2.0 PORTS (REAR)

4

AUDIO PORTS (REAR)

Realtek® ALC897 Codec

DISPLAYPORT

1

HDMI

1

DIRECTX

12

FORM FACTOR

ATX

CROSSFIRE

Y

OPERATING SYSTEM

Support for Windows® 11   64-bit, Windows® 10 64-bit




Reviews

5.0
Based on 2 ratings2 ratings
5☆
4☆
3☆
2☆
1☆
Reviews (2)
Write Review
Write Review
Reviews (2)
Powered by TestFreaks
Spyros Kollias
•

Excellent product! Very nice black high quality pcb. Lots of connections. No compromises , all lanes are free, i can have sata and am2 and pciexpress at the same time ddr4 memories because the ddr5-w are still un reachable

Pros:good quality an aftersales
Cons:i would like to have some heatsinks on the vrms that get very hot
Dave
•

This motherboard supports the 12gen intel CPUs without breaking the bank for ddr5 ram. It has four m.2 slots for future storage expansion and a usb c slot which is fantastic. If you want a 12 gen cpu this may well be the best bang for buck. The bios seems intuitive and my ram's XMP profile was automatically loaded.

Pros:Four M.2 slots. DDR4 ram (value)
