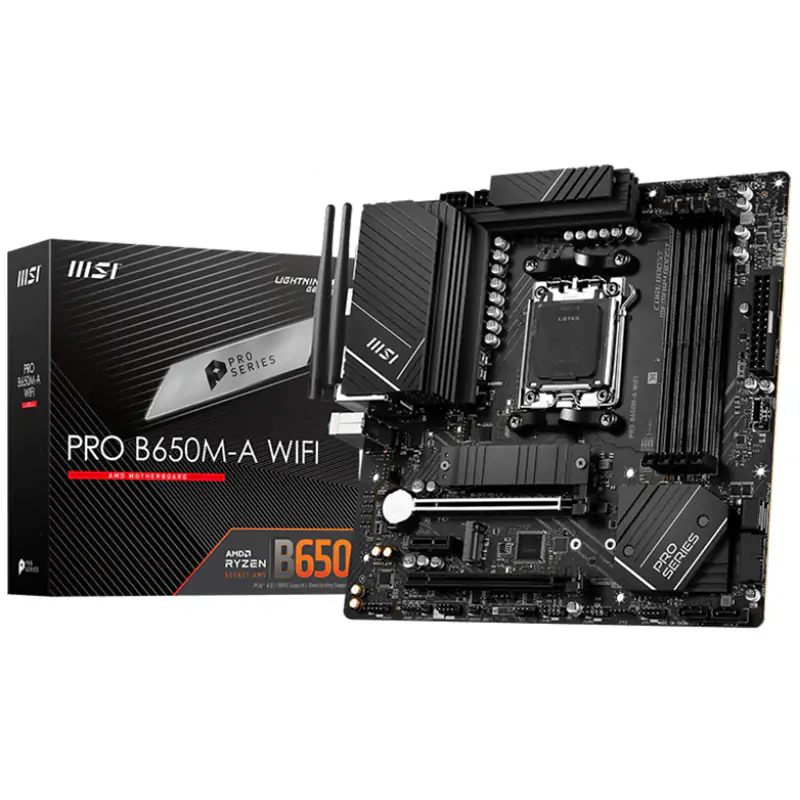

MSI Pro B650M-A WiFi AM5 mATX Motherboard (PRO B650M-A WIFI)

MSI Pro B650M-A WiFi AM5 mATX Motherboard (PRO B650M-A WIFI)
  • AMD-AM5-MSI-Pro-B650M-A-WiFi-AM5-mATX-Motherboard-6
  • AMD-AM5-MSI-Pro-B650M-A-WiFi-AM5-mATX-Motherboard-2
  • AMD-AM5-MSI-Pro-B650M-A-WiFi-AM5-mATX-Motherboard-3
  • AMD-AM5-MSI-Pro-B650M-A-WiFi-AM5-mATX-Motherboard-4
$188.0
Was: $198.0  WAS Tips    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 0hrs and 14mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    MSI Pro B650M-A WiFi AM5 mATX Motherboard (PRO B650M-A WIFI)
  • Model Number:
    PRO B650M-A WIFI
  • Brand:
  • Warranty Period:
    3 Year

Description

AMD-AM5-MSI-Pro-B650M-A-WiFi-AM5-mATX-Motherboard-1



SPECIFICATIONS:

Chipset

AMD B650

CPU support

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz



Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Onboard graphics

1x HDMI™

1x DisplayPort

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

Supports DP1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion slot

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Storage

2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G port

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

4x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

LAN

RealtekÂŽ 8125BG 2.5G LAN

Wireless / Bluetooth

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports BluetoothÂŽ 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

RealtekÂŽ ALC897 Codec

7.1-Channel High Definition Audio

Internal I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0

2x USB 3.2 Gen1 Type A

1x USB 3.2 Gen2 Type C

LED feature

4x EZ Debug LED

Back panel ports

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

DisplayPort

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

Operating system

Support for WindowsÂŽ 11 64-bit, WindowsÂŽ 10 64-bit

PCB dimension

mATX

243.84mmx243.84mm
