Chipset | AMD X870 |
CPU | Supports AMD Ryzen⢠9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen⢠9000 Series Processors max. overclocking frequency:
⢠1DPC 1R Max speed up to 8400+ MT/s
⢠1DPC 2R Max speed up to 6400+ MT/s
⢠2DPC 1R Max speed up to 6400+ MT/s
⢠2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOâ˘
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
⢠The DIMM slots on this motherboard have double-sided latches.
⢠Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the productâs Support page or visit https://www.msi.com/support/. |
Onboard Graphics | 1x HDMIâ˘
Support HDMI⢠2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4ÂŽ port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
⢠Supports PCIe 5.0 x16 (For Ryzen⢠9000/ 7000 Series processors)
⢠Supports PCIe 4.0 x8 (For Ryzen⢠8700/ 8600/ 8400 Series processors)
⢠Supports PCIe 4.0 x4 (For Ryzen⢠8500/ 8300 Series processor)
*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot |
Audio | RealtekÂŽ ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output |
Storage | 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
* The M2_2 slot will be unavailable when using Ryzen⢠8500/ 8300 Series processors.
** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
*** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.
**** Please refer to the manual for M.2 SSD heatsink restrictions |
Multi-GPU | AMD MULTI-GPU Support |
RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
USB | 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear) |
LAN | RealtekÂŽ 8126-CG 5G LAN |
Internal IO | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports |
Wireless LAN & Bluetooth | Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports BluetoothÂŽ 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every countryâs regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendorâs website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
LED Feature | 4x EZ Debug LED
1x EZ Digit Debug LED |
Back panel ports | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI⢠USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A |
Operating system | Support for WindowsÂŽ 11 64-bit |

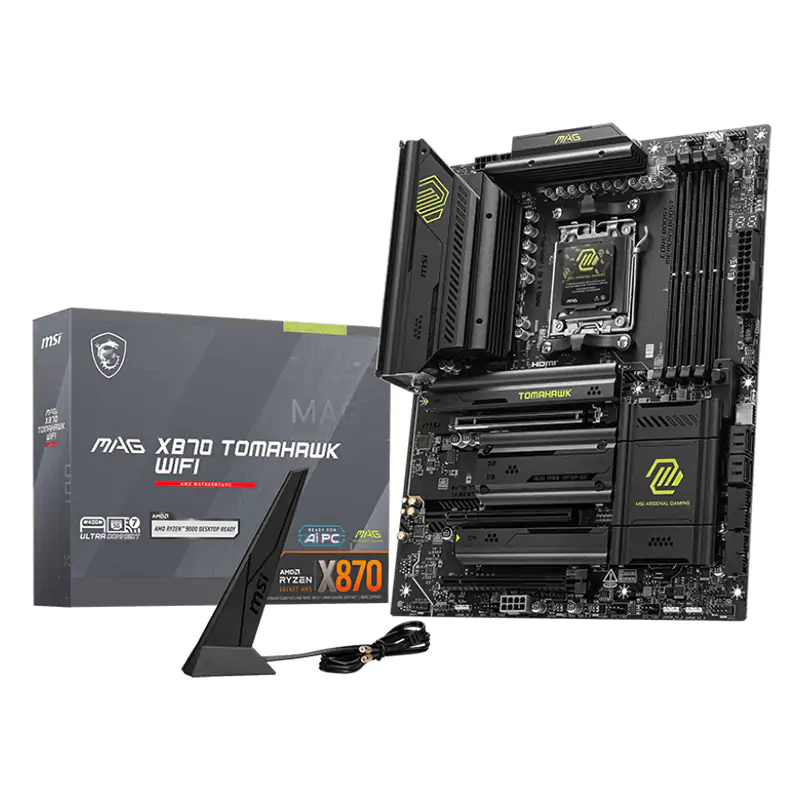

Box content | MAG X870 TOMAHAWK WIFI Motherboard 2 x SATA Cables EZ M.2 Clip II EZ M.2 Clip II Remover M.2 Plate Screw USB Drive EZ Wi-Fi Antenna 1 to 3 EZ Conn-Cable (V2) EZ Front Panel Cable Cable Sticker Quick Installation Guide European Union Regulatory Notice Shout-Out Flyer |
PCB Info | ATX
304.8mmx243.84mm |
