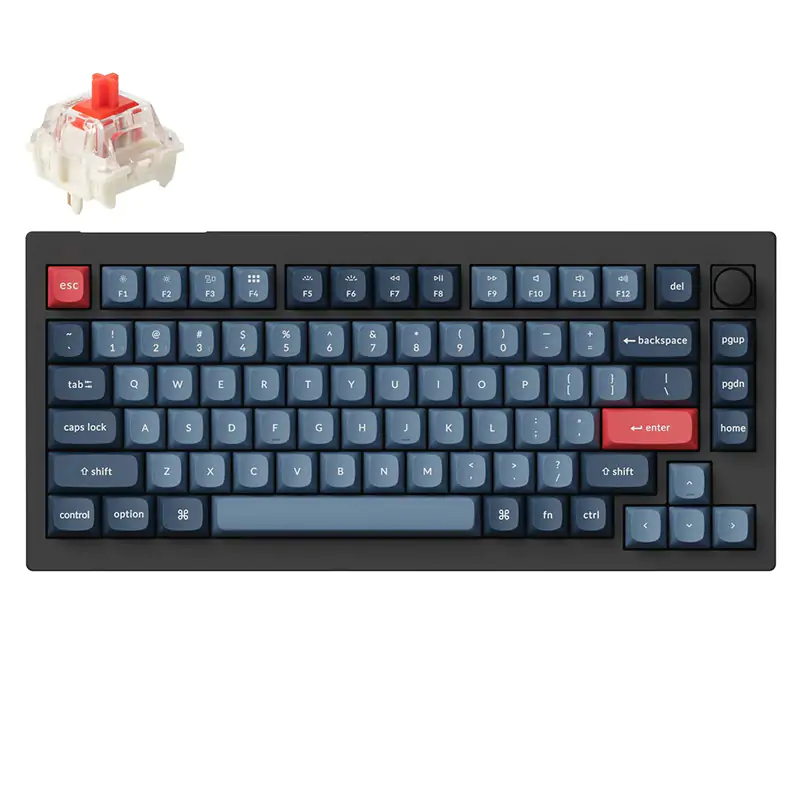

Keychron V1 MAX 75% Full Assembled Knob RGB Hot-Swap Wireless QMK Custom Keyboard Gateron Jupiter Red Switch (KBKCV1MD1)

Keychron V1 MAX 75% Full Assembled Knob RGB Hot-Swap Wireless QMK Custom Keyboard Gateron Jupiter Red Switch (KBKCV1MD1)
  • Keyboards-Keychron-V1-MAX-75-Full-Assembled-Knob-RGB-Hot-Swap-Wireless-QMK-Custom-Keyboard-Gateron-Jupiter-Red-Switch-KBKCV1MD1-3
$149.0 Question Mark
Was: $159.0  WAS Tips    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 35hrs and 7mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Keychron V1 MAX 75% Full Assembled Knob RGB Hot-Swap Wireless QMK Custom Keyboard Gateron Jupiter Red Switch (KBKCV1MD1)
  • Model Number:
    KBKCV1MD1
  • Brand:
  • Warranty Period:
    1 Year

Description

Keyboards-Keychron-V1-MAX-75-Full-Assembled-Knob-RGB-Hot-Swap-Wireless-QMK-Custom-Keyboard-Gateron-Jupiter-Red-Switch-KBKCV1MD1-1




SPECIFICATIONS:

Width

148.7 mm

Length

328.5 mm

Front Height

21.5 mm (without keycaps)

Back Height

29.4 mm (without keycaps)

Feet Height

2 mm

Angle

3.5° / 7.1° / 9.5°

Weight

770 g ± 10 g (Fully Assembled Version)

Body Material

ABS Plastic

Plate Material

PC

Polling Rate

1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)

Mount Style

Gasket Mount Design

Bluetooth Device Name

Keychron V1 Max

Battery

4000 mAh Rechargeable li-polymer battery

Wireless Working Time (Backlit off)

Up to 225 hours (Lab test result may vary by actual use)

Wireless Working Time (RGB)

Up to 100 hours (Lowest brightness)

Charging Time

Around 5 hours

Bluetooth Version

5.1

Compatible System

Windows/macOS/Linux

N-Key Rollover (NKRO)

Yes for both wireless and wired modes

Hot-swappable

Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.

Keycaps (Fully Assembled Version)

Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)

MCU

ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

Switches

Gateron Jupiter (Fully Assembled Version) - Red

Backlight

South-facing RGB LED

Stabilizer

Screw-in PCB stabs

Charging Port

USB Type-C

Cable

Type-C cable + Type-A to Type-C adapter

Operating Environment

-10℃ to   50℃
