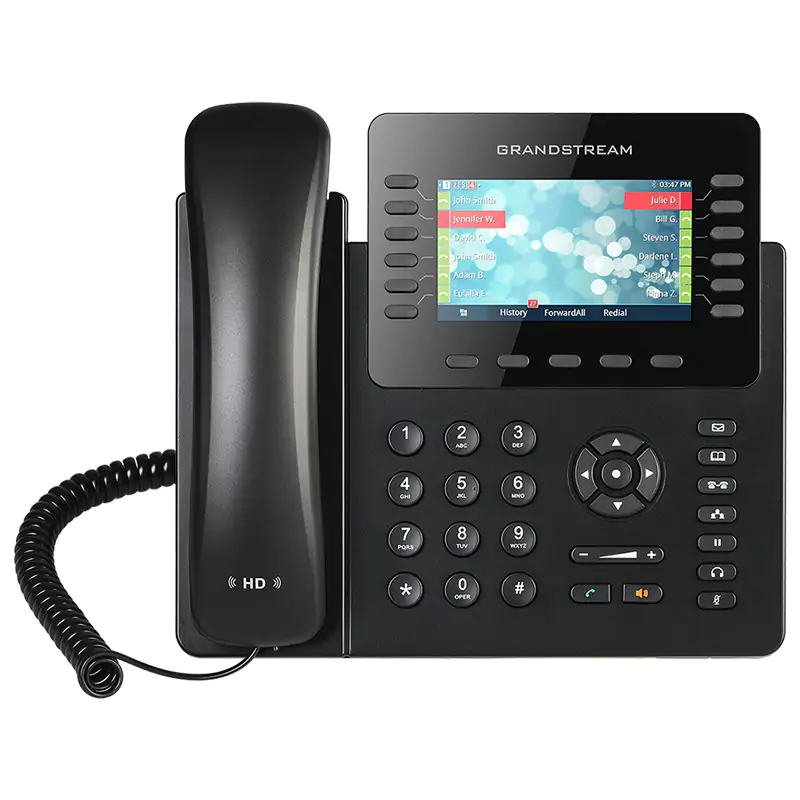

Grandstream 12 Lines 6 SIP Accounts PoE + GigE Color IP Phone
The GXP2170 is a powerful High-End IP phone that is ideal for busy users who handle high call volumes. Receptionists, administrators, sales staff and other call-intensive rolls can enjoy efficiency by utilizing the GXP2170ās 12 line keys, 4.3 inch color display LCD and 48 digital, on-screen speed dial/BLF keys. Provide users with the fastest possible connection speeds thanks to the deviceās dual Gigabit, PoE network ports. Maximized call control, expandable speed dial/BLF capabilities and a sleek design makes this phone the ultimate high-volume experience.
12 lines, 6 SIP accounts, 5 soft keys and 5-way voice conferencing 48 on-screen digitally customizable BLF/speed-dial keys 4.3 inch (480x272) color-screen LCD Dual Gigabit ports, integrated PoE Integrated Bluetooth Supports up to four GXP2200EXT Modules for BLF/speed-dial access to up to 160 contacts
SPECIFICATIONS:
Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6, CDP/SNMP/RTCP-XR | Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE | Graphic Display | 4.3 inch (480x272) TFT color LCD
| Bluetooth | Yes, integrated | Feature Keys | 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL | Voice Codecs | Support for G7.29A/B, G.711Āµ/a-law, G.726, G.722(wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC | Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port | Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio | Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit. | Base Stand | Yes, 2 angle positions available, Wall Mountable | QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS | Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control | Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more | Upgrade/Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file, FTP/FTPS | Power & Green Energy Efficiency | Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet (802.3af) Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs) | Physical | Dimension: 228mm(W) x 206mm(L) x 46mm(H); Unit weight:0.98kg; Package weight:1.43kg | Temperature and Humidity | Operation: 0Ā°C to 40Ā°C Storage: -10Ā°C to 60Ā°C Humidity: 10% to 90% Non-condensing | Package Content | GXP2170 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license |
|
