Equites V700 700W 80+ Bronze Power Supply (PSU-EQ-V700)

Equites V700 700W 80+ Bronze Power Supply (PSU-EQ-V700)
  • Power-Supply-PSU-Equites-V700-700W-80-Bronze-Power-Supply-PSU-EQ-V700-5
  • Power-Supply-PSU-Equites-V700-700W-80-Bronze-Power-Supply-PSU-EQ-V700-3
$63.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 17hrs and 9mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Equites V700 700W 80+ Bronze Power Supply (PSU-EQ-V700)
  • Model Number:
    PSU-EQ-V700
  • Brand:
  • Warranty Period:
    2 Year

Description

Power-Supply-PSU-Equites-V700-700W-80-Bronze-Power-Supply-PSU-EQ-V700-2

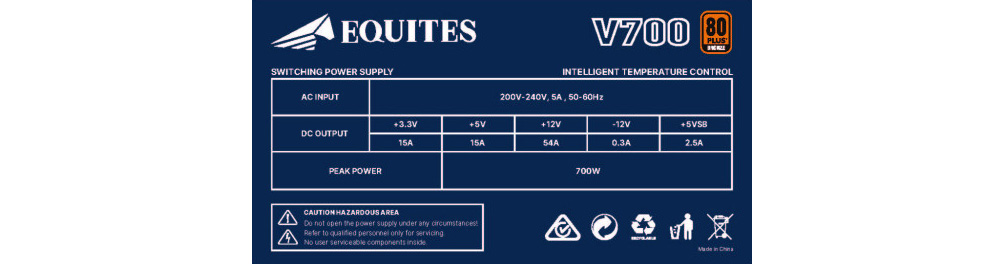

SPECIFICATIONS:

DC Output

700W

Combined +3.3V & +5V

Not exceed 100W

Max. Current for +12V

50A

Input Voltage

100 ~ 240V

Input Frequency

50Hz ~ 60Hz

PFC

Active PFC

Efficiency

80PLUS

20%   ~  82%

50%   ~  85%

100% ~  82%

MTBF

250,000 hours

Operating temperature

0°C ~ 40°C

Output Protection

Over current protection

Over voltage protection

Short circuit protection

Certification

RCM, 80 PLUS Bronze

Dimension

150 mm (W) x 85 mm (H) x 140 mm (D)

Connector

Connector:

Mainboard (20+4Pin)

CPU (4+4Pin)

PCIE (6+2Pin)

SATA+IDE (SATA & IDE)

SATA+IDE (SATA & IDE)

Exposed length (Connector):

500mm (20+4)

600mm (4+4)

500mm (6+2) / 150 (6+2)

450mm (SATA) / 150 (SATA) / 150 (IDE)

450mm (SATA) / 150 (SATA) / 150 (IDE) / 150 (IDE)
