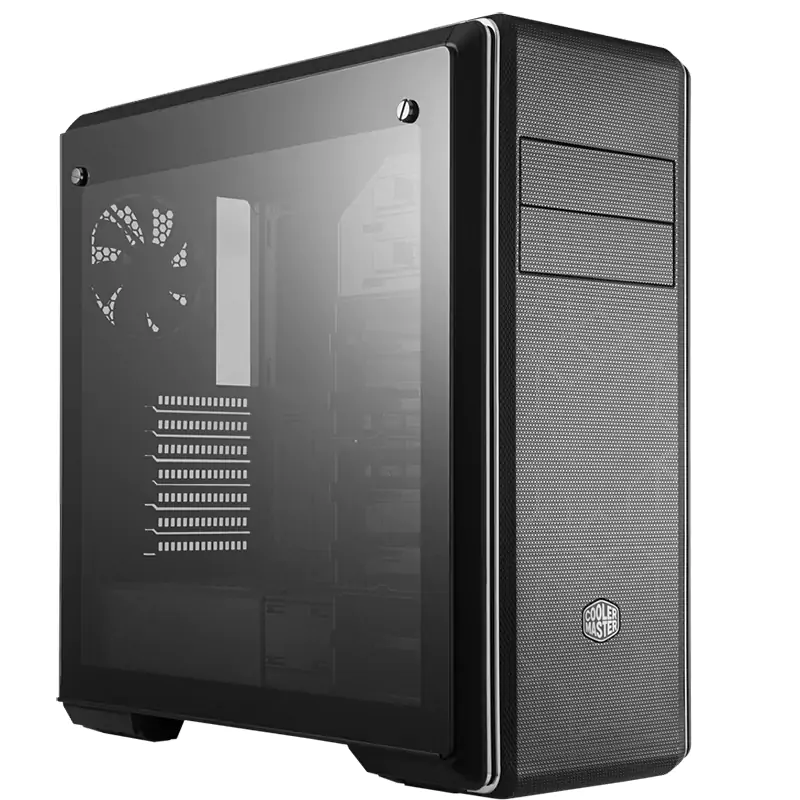

Cooler Master MasterBox CM694 Tempered Glass Mesh Front Panel (MCB-CM694-KG5N-S00)

Cooler Master MasterBox CM694 Tempered Glass Mesh Front Panel (MCB-CM694-KG5N-S00)
  • 52705_thumb_P_1574301782062
  • 52705_thumb_P_1574301809259
  • 52705_thumb_P_1574301810384
  • 52705_thumb_P_1574301810124
  • 52705_thumb_P_1574301810593
  • 52705_thumb_P_1574301811861
  • 52705_thumb_P_1574301812676
$178.5
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 34hrs and 49mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Cooler Master MasterBox CM694 Tempered Glass Mesh Front Panel (MCB-CM694-KG5N-S00)
  • Model Number:
    MCB-CM694-KG5N-S00
  • Brand:
  • Warranty Period:
    1 Year

Description

 Cooler Master MasterBox CM694 Tempered Glass Mesh Front Panel


1574301845693496

1574301848525917

1574301848379114

1574301849411418

1574301850580283

1574301851141965

1574301852222877

1574301853702352

1574301855364127


SPECIFICATIONS:

Model Number

MCB-CM694-KN5N-S00

Series

MasterBox Series

Size

Mid Tower

Available   colours

Black

Materials

Steel, Plastic,   tempered glass, mesh

Dimensions



Steel: 493mm x 220mm   x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions),   TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm   (excl. Protrusions)

Motherboard   support



Mini ITX, Micro ATX,   ATX, E-ATX

Expansion   Slots

7

5.25”   Drive Bays

2

2.5"   / 3.5" DRIVE BAYS (COMBO)

 (3x drive cages)

2.5”   Drive Bays

8(2+6 combo)

I/O   Panel



2x USB 3.0 Type A,   1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)

Pre-Installed   fans- Front



2x 120mm Fan (1200   RPM ± 200 RPM, 3 pin connector)

Pre-Installed   fans- Rear

1x 120mm fan (1200   RPM ± 200 RPM, 3 pin connector)

Fan   Support- Front

3x 120mm / 2x 140mm   (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)

Fan Support-   rear



1x 120mm

Fan   Support- top



3x 120mm, 2x 140mm

Radiator   Support- Front



120mm*, 140mm*,   240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of   3 drive cages & ODD cage)

Radiator   Support- Top



120mm, 140mm, 240mm,   280mm, 360mm, (mount radiator below the bracket & fans above the bracket   for maximum compatibility)

Radiator   Support- Rear



120mm

Clearance   CPU Cooler

171 mm

Clearance-   GFX



410mm/16.1",   350mm (with stabilizer), 280mm (with stabilizer + drive cage)

Clearance-   PSU



276mm, 160mm (drive   cage rear position)

Power   Supply Support



Bottom mount, ATX   PS2

Dust   filters

Top, Front, Bottom

Cable   routing

27-29mm

EAN   Code

4719512087305   (Steel), 4719512087299(TG)

UPC   Code

884102059759 (Steel)   884102059742 (TG)
