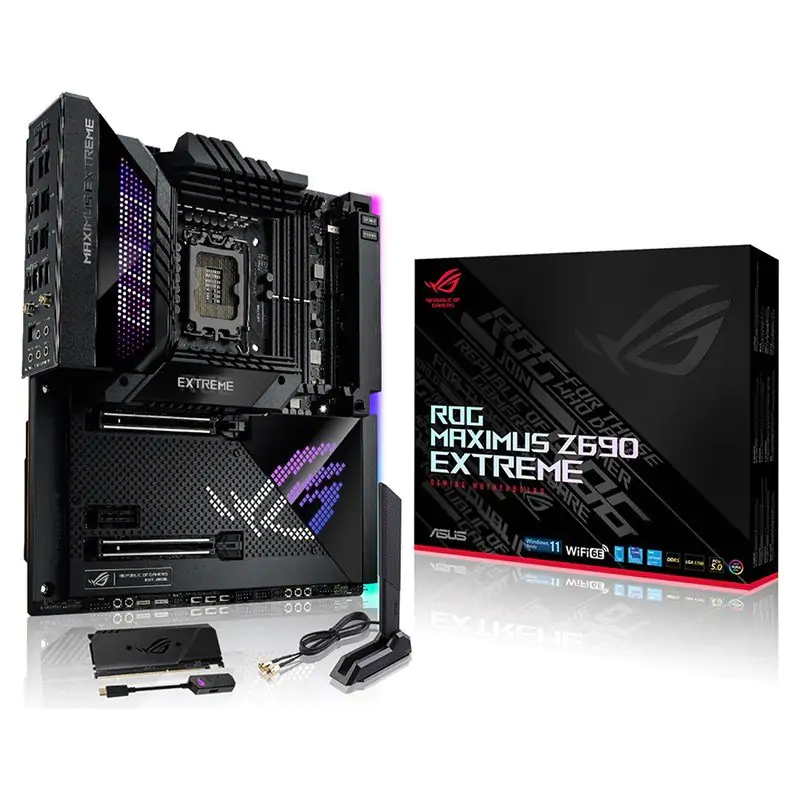

Chipset

Z690

Memory

4 x DIMM, Max. 128GB,   DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/   5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory   Architecture

Supports Intel® Extreme   Memory Profile (XMP)

OptiMem III

*Supported memory types,   data rate(Speed), and number of DRAM module vary depending on the CPU and   memory configuration, for more information refer to www.asus.com for memory   support list.

Graphics

2 x Intel® Thunderbolt™   4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

* Graphics   specifications may vary between CPU types. Please refer to www.intel.com for   any updates.

***Support 4K@60Hz as   specified in HDMI® 2.1.

Expansion Slots

Intel® 12th Gen   Processors*

2 x PCIe 5.0 x16 slots   (supports x16 or x8/x8 modes)**

Intel® Z690 Chipset***

1 x PCIe 3.0 x1 slot

* Please check PCIe   bifurcation table in support site.

** M.2_1 shares   bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be   disabled.

*** Support Intel®   Optane Memory H Series on PCH-attached PCIe slot.

Storage

Supports 5 x M.2 slots   and 6 x SATA 6Gb/s ports

Total supports 5 x M.2   slots and 6 x SATA 6Gb/s ports*

Intel® 12th Gen   Processors

M.2_1 slot (Key M),   type 2242/2260/2280/22110***

- Intel® 12th Gen   processors support PCIe 5.0 x4 mode.

M.2_2 slot (Key M),   type 2280

- Intel® 12th Gen   processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_3 slot (Key M),   type 2280 (supports PCIe 4.0 x4 & SATA modes)

DIMM.2_1 slot (Key M)   via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

DIMM.2_2 slot (Key M)   via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s   ports****

* Intel® Rapid Storage   Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage   Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

***M.2_1 shares   bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be   disabled.

****RAID configuration   and boot drives are not supported on the SATA6G_E1-2 ports.

Ethernet

1 x Intel® 2.5Gb   Ethernet

1 x Marvell® 10Gb   Ethernet

ASUS LANGuard

Wireless & Bluetooth

Intel® Wi-Fi 6E

USB

Rear USB:Total 10 ports

1 x Thunderbolt™ 4 port   (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2   port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports   (7 x Type-A + 1 x USB Type-C®)

1 x Thunderbolt™ 4   connector (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2   connector (supports USB Type-C®)

2 x USB 3.2 Gen 1   headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers   support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1   Surround Sound High Definition Audio CODEC ALC4082

- Impedance sense for   front and rear headphone outputs

- Supports:   Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB   SNR stereo playback output and 113 dB SNR recording input

- Supports up to   32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding   Technology

- ESS® SABRE9018Q2C   DAC/AMP

- LED-illuminated audio   jacks

- Rear optical S/PDIF   out port

- Premium audio   capacitors

- Audio cover

Back Panel I/O Ports

1 x Thunderbolt™ 4 USB   Type-C® port

1 x USB 3.2 Gen 2x2   port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports   (7 x Type-A + 1 x USB Type-C®)

1 x HDMI® port

1 x ASUS Wi-Fi Module

1 x Intel® 2.5Gb   Ethernet port

1 x Marvell® AQtion   10Gb Ethernet port

5 x LED-illuminated   audio jacks

1 x Optical S/PDIF out   port

1 x BIOS FlashBack™   button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan   header

2 x 4-pin Chassis Fan   headers

2 x 4-pin Radiator Fan   headers

2 x W_PUMP+ headers

1 x WB_SENSOR header

1 x 2-pin Water In   header

1 x 2-pin Water Out   header

1 x 3-pin Water Flow   header

Power related

1 x 24-pin Main Power   connector

2 x 8-pin +12V Power   connector

1 x 6-pin PCIe Graphics   Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot   supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x Intel® Thunderbolt™   4 port (USB Type-C®)

1 x USB 3.2 Gen 2x2   connector (supports USB Type-C®)

2 x USB 3.2 Gen 1   headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers   support additional 4 USB 2.0 ports

Miscellaneous

1 x 6-pin ARGB Gen 2   header to support 2 x ARGB Gen 2 headers

1 x Addressable Gen 2   header

1 x AURA RGB header

1 x BIOS Switch button

2 x BCLK button

1 x FlexKey button

1 x Front Panel Audio   header (AAFP)

1 x LN2 Mode jumper

1 x Osc sence header

12 x ProbeIt Measurement   Points

1 x ReTry button

1 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x V_Latch switch

1 x 10-1 pin System   Panel header

1 x Thermal Sensor   header

Special Features

Extreme OC Kit

- FlexKey button

- LN2 Mode

- Probelt

- ReTry button

- Safe boot button

- Start button

- Slow Mode

Extreme Engine Digi+

- 10K Black Metallic   Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red],   DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink   backplate

- M.2 heatsink

- Steel backplate

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™   button

- Clear CMOS button

- CPU Socket lever   protector

- ProCool II

- Pre-mounted I/O   shield

- SafeSlot

- SafeDIMM

AURA Sync

- ROG AURA sync   backplate

- AURA RGB header(s)

- Addressable Gen 2   header(s)

Dual BIOS

OLED 2"

Front Panel USB 3.2 Gen   2x2 with Quick Charge 4+ Support

- Support: up to 60W   charging*

- Output: 5/9/15/20V   max. 3A, PPS:3.3–21V max. 3A

- Compatible with QC   4.0/3.0/2.0, PD3.0 and PPS

* To support 60W,   please install the power cable to 6-pin PCIe Graphics Card connector or can   only support 27W

ASUS HYDRANODE

- 2 x Chassis fan   support* (CHA_FAN1P,CHA_FAN2P)

* Visit ASUS Website   for the latest compatibility list.

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- ROG True Voltician

- Sonic Studio III +   Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

- BullGuard Internet   Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1   year full version)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise   Cancelation

- OLED Display

- AniMe MatrixTM LED   Display

AI Suite 3

- Easy Optimization   with AI Overclocking

TPU

EPU

DIGI+ Power Control

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ   Mode

MemTest86

BIOS

2 x 256 Mb Flash ROM,   UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

1 x 1-to-3 ARGB   splitter cable

1 x 1-to-2 ARGB   splitter cable

2 x 1-to-4 fan splitter   cables

1 x RGB extension cable

3 x ROG weave SATA 6G   cables

4 x SATA 6Gb/s cables

1 x 3-in-1 Thermistor   cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller   3M Mounting tape

1 x Fan Controller   manual

ROG DIMM.2 with   Heatsink

1 x ROG DIMM.2 with   heatsink

1 x M.2 pad for ROG   DIMM.2

2 x M.2 screw package   for ROG DIMM.2

ROG True Voltician

1 x ROG True Voltician

4 x cables for ROG True   Voltician

Miscellaneous

1 x ASUS Wi-Fi moving   antennas

1 x M.2 SSD screw   package

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG graphics card   holder

1 x ROG key chain

1 x ROG logo plate   stickers

1 x ROG screwdriver

1 x ROG stickers

1 x ROG thank you card

1 x Thermal pad package   for M.2 heatsink

Installation Media

1 x USB drive with   utilities and drivers

Documentation

1 x User guide

Operating System

Windows 10 64bit

Form Factor

EATX

30.5cm x 27.7cm
